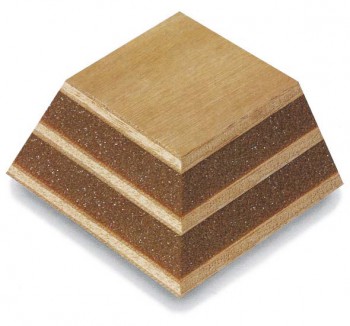

Light sandwich panel with okoumè-plywood faces and PVC 80 Kg/m3 LAYERS. With okoumè plywood faces (for screw holding).

Composite panel made by marine Okoumè plywood (also RINA approved). Stiff PVC FOAM inserts (PVC weighs approx. 80 kg/m3) and central core by marine Okoumè plywood. While the panel is quite lightweight, it ensures maximum physical-mechanical performance, is resistant to both chemicals and pathogens and offers excellent insulation properties. Composite sandwich with central core not only improves the properties of the JohnMar panel, but also produces significant
panel application advantages, facilitating dovetailing, joints and securing. Outside surfaces can be supplied already veneered or covered with some other decorative material. Ideal for all uses that require a light panel. All glues used have E1 classification i.e. low formaldehyde emissions.

Standard production:
Thicknesses from 21 to 54 mm.
Sizes: 2490x1210 mm - 2490x1580 mm - 3090x1520 mm - 3090x1580 mm

Specifications

• Raw material: Okoumé plywood
• Gluing: Class 3 - exterior for the plywood
• Sizes:
  2490x1210 mm
  2490x1580 mm
  3090x1520 mm
  3090x1580 mm
• Thickness: From 21 to 54 mm
