JohnSugAC

JohnSugAC

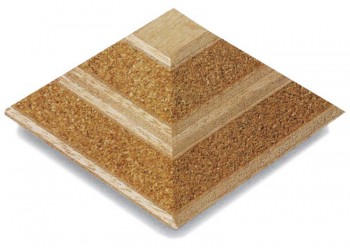

Light sandwich panel with okoumè-plywood faces and cork’s core (density 260/290 kg/m3) with Okoumè central core for eventual screw holding.Composite panel made by marine Okoumè plywood (also RINA approved).CORK inserts divided by a central core of marine Okoume plywood creates a panel that achieves high acoustic and thermal insulation. While the panel is quite lightweight, it ensures maximum physical-mechanical performance and is both practical and easy to use,
improves head joints, prevents the need for screw anchors and offers excellent thermal and acoustic insulation. Outside surfaces can be supplied already veneered or covered with some other decorative material.These panels are ideal for all those uses that require light, thermal-acoustic insulating panels made of natural materials.
All glues used have E1 classification i.e. low formaldehyde emissions.

Standard production:
Thicknesses from 21 to 50 mm.
Sizes: 2490x1210 mm - 2490x1580 mm - 3090x1520 mm - 3090x1580 mm

Specifications

  • Raw material: Okoumé plywood
  • Gluing: Class 3 - exterior for the plywood
  • Sizes:
    2490x1210 mm
    2490x1580 mm
    3090x1520 mm
    3090x1580 mm
  • Thickness: From 21 to 50 mm

Tags: Composite Panel, Okoumé, Sandwich Panel
